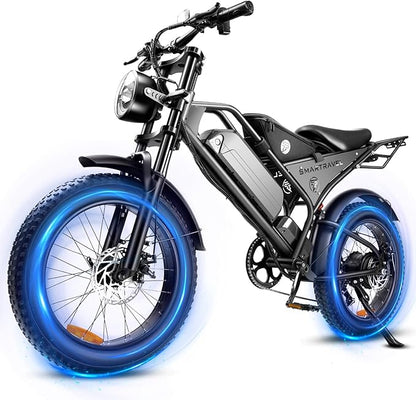

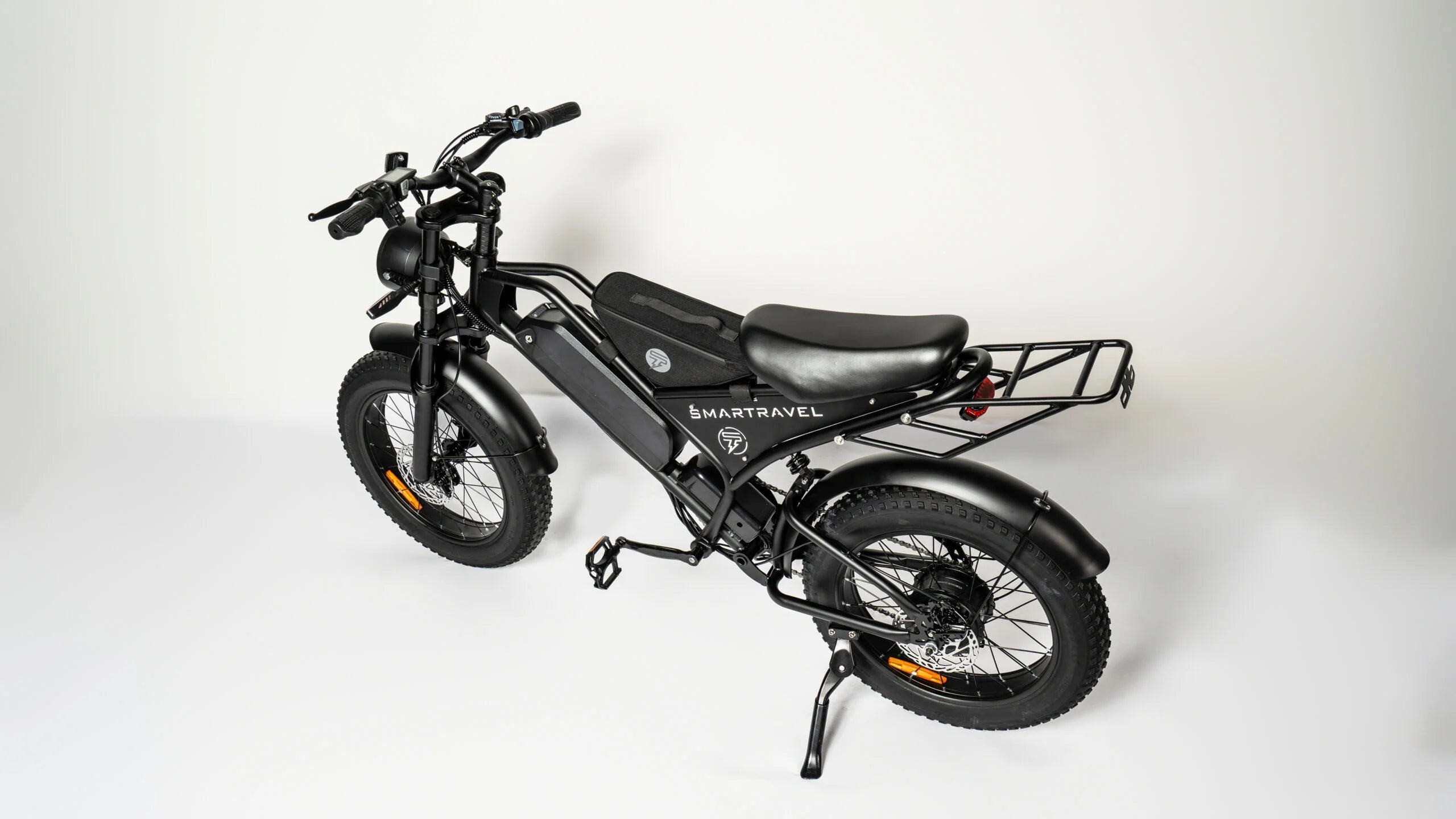

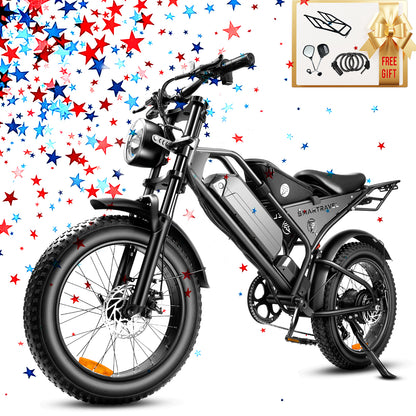

Smartravel Explorer DK400 | All Terrain Electric Bike
28 Mph
Eco-Mode Speed
45+ Miles
Per Charge
(Maximum）
1000 W
Geared Hub Motor
Mechanic
Brakes
Speed Sensor
Sensor
48V15AH
Samsung/LG Battery
20X4 "
Chao Yang Fat Tire
350 Lb.
Payload Capacity
The Range Can Be Affected By Several Factors Like Rider Weight, Incline, And Pedal-Assist Levels, Etc.
Elegance Is In The Details
Designed To Perfectly Balance Outstanding Performance Ultimate Comfort, And Timeless Style. Explore As Never Before With DK400
UPGRADED 1000W MOTOR
Fast Acceleration & Good Gradeability & Longer Lifespan
DK400
Hub Motor
FOC Field
oriented control
1000W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 1000W brushless gear hub motor can help you conquer even the most rugged terrain easily.
Imagine The FOC As The Motor’s Real-Time Brain. It Assesses Your Riding Conditions, Promptly Engaging The Motor For Peak Performance. Additionally, It Monitors Ebike Diagnostics—Details Hidden From You As The Rider—And Adapts Its Response Based On Your Driving Inputs
1000W
Geared Hub Motor
86 Nm
Max Torque
Long Range Expert
15AH High-Performance Lithium-Ion Battery
DK400
48V 15AH
BMS Ensure
your Safety
The Smartravel bike features cutting-edge battery technology, merging Samsung/LG Battery
advancements into a compact 3200mAh single cell. Unlike traditional 2500mAh nickel-cobalt-manganese cells, this 960Wh battery significantly enhances range, stability, and safety. With a single charge, you can cover up to 26+ miles in pure electric mode and 45+ miles (depending on rider weight and road conditions) in PAS mode. Remarkably, even after 800 charges, the battery retains 80% of its original capacity
Ensuring The Durability And Efficiency Of Your Ride Through Smart Battery Safeguards
45+ Miles
Per Charge (Maximum)
8.8 Lb
Battery Weight
CLEAR AT A GLANCE
Fast Acceleration & Good Gradeability & Longer Lifespan
LCD Display
Left Handle
Right Handle
The Color LCD display shows speed, mileage, gear level and power
The Half Twist Throttle Paired With A 7-Speed Shimano Derailleur Ensures Versatile Performance Across All Terrains
Gain Extra Payload With 2X Thicker Frame
2X Thicker Aerospace
Grade Aluminum Frame
Removable Battery
Built-in design
The DK400 Features An Upgraded 6061 Aluminum Frame, Twice As Thick As Conventional Bike Frames, And Incorporates An Integrated Battery Design. This Sturdy Frame Can Support Weights Of Up To 400 Lbs, All While Ensuring The Stability Of The Motor And Battery. Riding The DK400 Feels Akin To Maneuvering A Tank Off-Road, Offering A Solid, Safe, And Reliable Riding Experience.
The E-Bike Features A Removable Built-In Battery That Is Smartly Designed To Withstand Dust, Dirt, Rain, And Other Environmental Hazards. This Ensures A Longer Battery Life And A Safer Ride. The E-Bike Also Looks More Fashionable And Modern, With A Sleek And Integrated Battery That Blends In With The Frame. You Don’t Have To Worry About Thieves Stealing Your Battery, As It Is Securely Locked Inside The E-Bike.
350 Lb.
Payload Capacity
79 Lb.
Weight
The ChaoYang All-Terrain Fat Tire
Chaoyang 20″X4.0″ Fat Tires Offer Robust Grip And Traction On Rough Terrain. Whether You’re Navigating Challenging Landscapes Or Adverse Weather, These Tires Ensure Your Safety And Deliver A Comfortable, Smooth Riding Experience
Front and Rear Dual Suspension
The electric bike adopts rear and front dual suspension hydraulic front fork, which allows you to deal with various terrains easily and avoid injuries and rollovers.
Dual Mechanic Reliable Disc Brake
Through the front and rear dual mechanic disc brakes, the braking distance can be effectively shortened even in high-speed driving, off-road, rainy weather, etc.

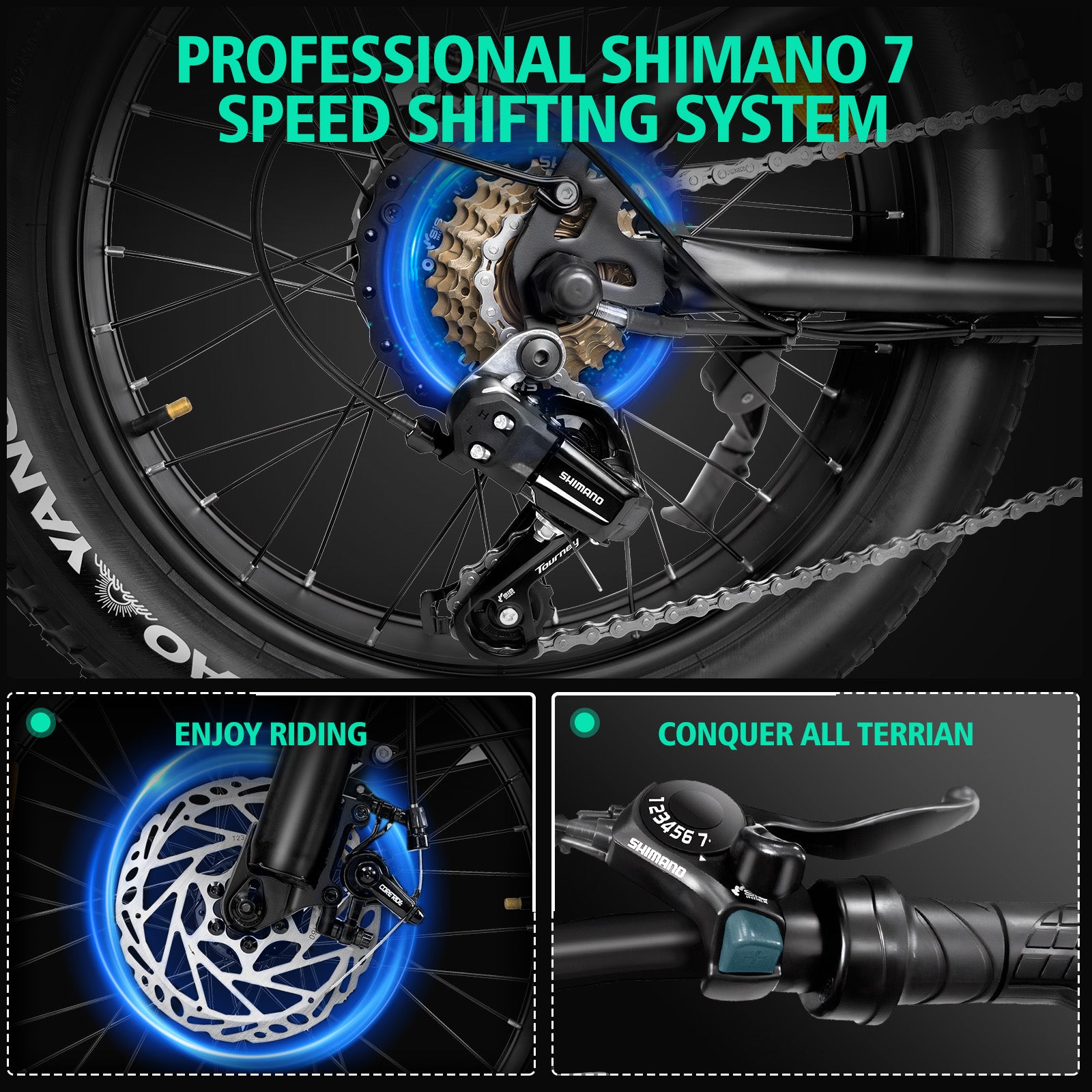

Shimano Speed Shift System
With shimano derailleur & shifting gears,you can choose the speed and enjoy the fun of riding.
Specification
| Frame | Headset | Fork | Shock |
|---|---|---|---|
| 6061 Aluminum Frame | Neco H114 28.6*44*30 | KKE R150S Coil Spring Fork Compression | Rebound Adjustable 140mm Travel 15*150mm Axle | EXA A5-RE 180*47mm |
| Front Wheel | Rear Wheel | Tires | Battery |
| Rim: MD-147 20*4.0″”*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H | Rim: MD-147 20*4.0″”*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 1500w | Hub Motor | Chao Yang 20*4.0 | Samsung/LG 48V 15Ah |
| Motor | Display | Throttle | Sensors |
| 1000W Brushless Gear Motor | Smartravel LCD Display | Half-Twiste Throttle | Speed Sensor丨Brake Sensor |
| Crankset | Freewheel | Chain | Groupset |
| 44T BCD104 6061-T6 145mm | Shimano MF-TZ500-7 14-28T | KMC Z8.3 EPT 130L | Shimano Altus M310 7 Speed |
| Front Brake | Rear Brake | Rotors | |
| Mechanic Brake | Mechanic Brake | DengFengHua TR180-52 F:180mm R:180mm |
Others
| Frame Range | Controller | Charger | Rider Height |
|---|---|---|---|
| 30-50 Miles | 48V/15A | US Standard 3.0 A Smart Charger | 5’4″~6’3″ |
| Weight | Max. System Weight | ||
| 88 Lb. | 330 Lb. |
Components
| Stem | Handlebar | Seatpost | Saddle |
|---|---|---|---|
| 3D Forged Alloy Ext:40mm | YC-B086 22.2*31.8*720mm | / | Leather Seat |
| Pedal | Lights | Kickstand | |
| Aluminum Pedal | 48V LED Light | Heavy-Duty Aluminum Kickstand |
1 – Zebra: Half Twist Throttle
"The Smartravelbike Explorer DK400 is a solid all-season e-bike with good performance, and it's reasonably priced at $849."
"The Smartravelbike Explorer DK400 is a solid e-bike that provides riders with a comfortable, stable, and accessible ride, whether for daily commutes or leisurely rides."
"The Smartravelbike Explorer DK400 emerges as a commendable choice for those seeking a robust, occasional-use e-bike, particularly in urban settings."
"If you’re looking for an easy to buy and ride e-bike for exercise, commuting, errands, and fun rides with friends, the Explorer DK400 is a fine choice."
FAQs
What is the seat height on the DK400?
The seat height is 33 inches.

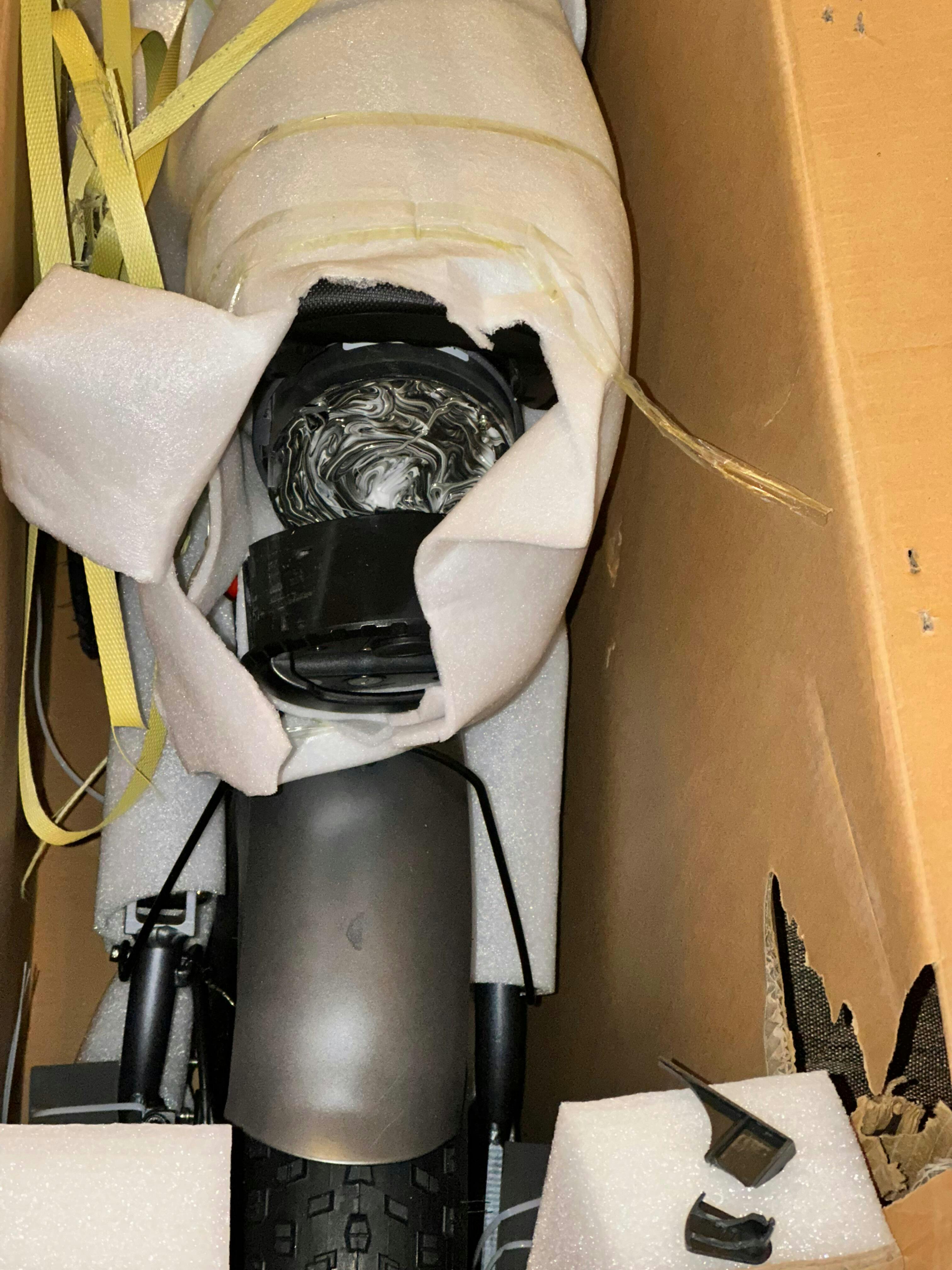

Do I need to assemble the Smartravel DK400 EBike when it arrives?
Only simple installation is required, our DK400 electric bike is 90% assembled. All you need to do is drive into the fun blind box and secure the handlebars with a few screws.
How long does it take to charge the battery? How far will it travel on one charge?
The DK400 e-bike is equipped with a powerful LG 48V 15Ah battery that can be fully charged in only 5 hours and can travel as far as 50-80 Miles on a single charge. Experience the thrill of the ride, conquer city streets, and embrace endless exploration.
Will the DK400 still work if the battery is dead?
Absolutely! When the battery runs out, the DK400 seamlessly transitions into a traditional bike with 0 to 5 levels of pedal assist. In power mode, the DK400 transforms into an electric bike, a racing bike, or even a motorcycle, enhancing your stability and handling while delivering an exhilarating off-road riding experience.
How long the battery can last? and how long does it take to charge?
The battery can last for 50-80 Miles and it only takes 5-6 hours to be fully charged.
